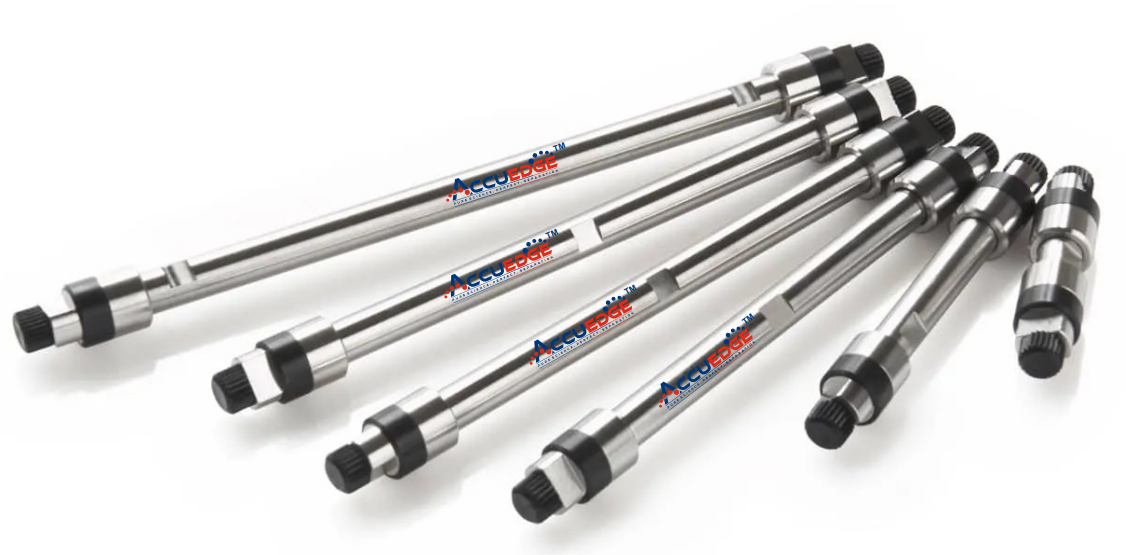

Accushield Columns

Our Excellent Control In Silica Particle Synthesis And Controlled Bonding Technology Makes Accushield Column Best Quality.

Accushield Hplc Column Are Best Choice For Method Development As Has Complete Bonding Chemistries And Stable Performance Lot To Lot.

Column is excellent rugged for most demanding chromatographic conditions.

AccuShield C18

These columns feature an ultrapure silica substrate with extremely low metal content to minimize tailing effects and deliver symmetrical peak shapes Contains High carbon lood 23% that provides best hydrophobic selectivity.

Learn more

AccuShield C18 Peptide

Has lower carbon load of 14 % to gain perfect hydrophobic selectivity. Column comes in 200A pore size which is also ideal choice for intermediate size molecules like peptide.

Learn more

AccuShield C18-AQ

Complementary selectivity to C18 phase. Column is compatible with 100 % aqueous mobile phase. Strong retention of hydrophilic polar compounds compared to above C18 series.

Learn more

Accushield

Our Excellent Control In Silica Particle Synthesis And Controlled Bonding Technology Makes Accushield Column Best Quality

Series	Features
AccuShield C18	-> These columns feature an ultrapure silica substrate with extremely low metal content to minimize tailing effects and deliver symmetrical peak shapes Contains High carbon load 23% that provides best hydrophobic selectivity. -> General purpose column ideal choice for separation of polar compounds in a reverse phase mechanism. Column comes in 100 A pore size.
AccuShield C18 Peptide	-> Has lower carbon load of 14 % to gain perfect hydrophobic selectivity. -> Column comes in 200A pore size which is also ideal choice for intermediate size molecules like peptide. -> Best end capping technology provides minimal to minimal secondary interaction their by help to predict and control reverse phase interaction. -> Perfect choice for separation of peptide, acids, base and neutral compound based on hydrophobiicties
AccuShield C18-AQ	-> Complementary selectivity to C18 phose. Column is compatible with 100 % aqueous mobile phose. -> Strong retention of hydrophilic polar compounds compared to above C18 series.
AccuShield C8	-> Accu shield C8 is a choice of column for analyte with moderately hydrophobicity. -> Column has less hydrophobicity compared to C18 column with high surface area and optimum carbon load. Hydrophobic retentivity is lower compared to C18 column and hence help for faster analysis.
AccuShield C8-Peptide	-> Accushield C8 peptide has larger pore size compared to Accushiled C8 and make ideal candidate for intermediate size molecules like peptide. -> Lowest hydrophobic retention compared to Accushield C8 column their by yield faster analysis.
AccuShield C8-AQ	-> Alternat selectivity compared to Accushield CB column. Accushield CB AQ is compatible with 100% aqueous mobile phase, column is avialbale in 100A pore size and help to retain comparative more polar compound that difficult to retain in CB.
Accushield Phenyl	-> Enhanced interaction for mid polar and aromatic compounds. Dual interaction mode based on hydrophobicity and pi-pi interaction allows separation of multiple different class of compounds including isomers. -> Column is ideal choice for aromatic compounds
AccuShield Biphenyl	-> Accushield biphenyl Peptide is a unique column with large pore Size when compared with Accushield bi-phenyl column. gives extremely fast separation without impact on peak symmetry.Ideal column for peptide analysis that provides alternate selectivity to C18.
AccuShield PFP	-> Accushield PFP is a penta fluro phase with a propyl spacer. Column is ideal choice for halogenated compounds and nonhalogenated polar analytes. Unique aromatic selectivity of this column is due to highly electronegative fluorine'S attached to phenyl ring.
Accu Shield Amino	-> Accushield Amino Has Chemically Bonded Amino Propyl Bonded Stationary Phase That Has 100A Pore Size And High Carbon Load. -> Using this column molecules can be seperated in NP, RP and anion exchange too. -> Best choice for higly polar compounds like of Sugar molecule
Accu Shield Amino Peptide	-> Accushield Amina peptide is a variant of Accushield Amino column in a pore size larger than Accushield amino column. Column has 200A pore size with carbon load lower as 9%. -> Retentivity of molecules is lower in Accushield Amino peptide column when compared ared with Accushiled amino columns.
AccuShield RP Amide	-> Provides alternative selectivity compared to C18, C8 and other aromatic phases. -> Stationary phase has a polar amide group that is well suitable for water soluble compounds. very good choices when most of C18 and C8 phases fail to give desire separations of analyte -> Stationary phase has a polar amide group that is well suitable for water soluble compounds.
AccuShield Супо	-> Cyano is a unique phase that can be used in either normal phase or reverse phase. -> when used reverse phase it provides alternate selectivity compared to C8 and C18 columns
AccuShield Cyano Peptide	-> Accushield Cyano peptide comes with uniqueness of large pore size compared to Accushield Cyano column and less carbon loading. -> Selectivity is lower when compared to Accushield CN column for polar compounds.
AccuShield Silica	-> Accushield Silica column comes with ultra pure fully porous silica gel with extremly low metal content -> Silica column is used for highly hydrophilic compound in normal phase mode that use highly nonpolar mobile phase
AccuShield Silica Peptide	-> Accushield Si peptide comes with large pore size variants of 2004 compared to 100 A pore size Accushiled Si column. -> Column is made of ultra pure silica.

Accushield C18
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003C18	S0303003C18	S0304003C18	S0304603C18
	33	-	-	-	S0334003C18	S0334603C18
	50	-	S0502003C18	S0503003C18	S0504003C18	S0504603C18
	100	-	S1002003C18	S1003003C18	S1004003C18	S1004603C18
	125	-	S1252003C18	S1253003C18	S1254003C18	S1254603C18
	150	-	S1502003C18	S1503003C18	S1504003C18	S1504603C18
	200	-	S2002003C18	S2003003C18	S2004003C18	S2004603C18
	250	-	S2502003C18	S2503003C18	S2504003C18	S2504603C18
	300	-	-	-	S3004003C18	S3004603C18

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005C18	S0303005C18	S0304005C18	S0304605C18
	33	-	-	-	S0334005C18	S0334605C18
	50	-	S0502005C18	S0503005C18	S0504005C18	S0504605C18
	100	-	S1002005C18	S1003005C18	S1004005C18	S1004605C18
	125	-	S1252005C18	S1253005C18	S1254005C18	S1254605C18
	150	-	S1502005C18	S1503005C18	S1504005C18	S1504605C18
	200	-	S2002005C18	S2003005C18	S2004005C18	S2004605C18
	250	-	S2502005C18	S2503005C18	S2504005C18	S2504605C18
	300	-	-	-	S3004005C18	S3004605C18

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010C18	S0303010C18	S0304010C18	S0304610C18
	33	-	-	-	S0334010C18	S0334610C18
	50	-	S0502010C18	S0503010C18	S0504010C18	S0504610C18
	100	S1001010C18	S1002010C18	S1003010C18	S1004010C18	S1004610C18
	125	-	S1252010C18	S1253010C18	S1254010C18	S1254610C18
	150	-	S1502010C18	S1503010C18	S1504010C18	S1504610C18
	200	-	S2002010C18	S2003010C18	S2004010C18	S2004610C18
	250	-	S2502010C18	S2503010C18	S2504010C18	S2504610C18
	300	-	-	-	S3004010C18	S3004610C18

Accushield C18 Petide
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003C18P	S0303003C18P	S0304003C18P	S0304603C18P
	33	-	S0334003C18P	S0334603C18P	S0502003C18P	S0503003C18P
	50	-	S0504003C18P	S0504603C18P	-	-
	100	-	S1002003C18P	S1003003C18P	S1004003C18P	S1004603C18P
	125	-	S1252003C18P	S1253003C18P	S1254003C18P	S1254603C18P
	150	-	S1502003C18P	S1503003C18P	S1504003C18P	S1504603C18P
	200	-	S2002003C18P	S2003003C18P	S2004003C18P	S2004603C18P
	250	-	S2502003C18P	S2503003C18P	S2504003C18P	S2504603C18P
	300	-	-	-	S3004003C18P	S3004603C18P

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005C18P	S0303005C18P	S0304005C18P	S0304605C18P
	33	-	-	-	S0334005C18P	S0334605C18P
	50	-	S0502005C18P	S0503005C18P	S0504005C18P	S0504605C18P
	100	-	S1002005C18P	S1003005C18P	S1004005C18P	S1004605C18P
	125	-	S1252005C18P	S1253005C18P	S1254005C18P	S1254605C18P
	150	-	S1502005C18P	S1503005C18P	S1504005C18P	S1504605C18P
	200	-	S2002005C18P	S2003005C18P	S2004005C18P	S2004605C18P
	250	-	S2502005C18P	S2503005C18P	S2504005C18P	S2504605C18P
	300	-			S3004005C18P	S3004605C18P

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010C18P	S0303010C18P	S0304010C18P	S0304610C18P
	33	-	-	-	S0334010C18P	S0334610C18P
	50	-	S0502010C18P	S0503010C18P	S0504010C18P	S0504610C18P
	100		S1002010C18P	S1003010C18P	S1004010C18P	S1004610C18P
	125	-	S1252010C18P	S1253010C18P	S1254010C18P	S1254610C18P
	150	-	S1502010C18P	S1503010C18P	S1504010C18P	S1504610C18P
	200	-	S2002010C18P	S2003010C18P	S2004010C18P	S2004610C18P
	250	-	S2502010C18P	S2503010C18P	S2504010C18P	S2504610C18P
	300	-	-	-	S3004010C18P	S3004610C18P

Accushield AQ
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003C18A	S0303003C18A	S0304003C18A	S0304603C18A
	33	-	S0334003C18A	S0334603C18A	S0502003C18A	S0503003C18A
	50		S0504003C18A	S0504603C18A	-	-
	100	-	S1002003C18A	S1003003C18A	S1004003C18A	S1004603C18A
	125	-	S1252003C18A	S1253003C18A	S1254003C18A	S1254603C18A
	150	-	S1502003C18A	S1503003C18A	S1504003C18A	S1504603C18A
	200	-	S2002003C18A	S2003003C18A	S2004003C18A	S2004603C18A
	250	-	S2502003C18A	S2503003C18A	S2504003C18A	S2504603C18A
	300	-	-	-	S3004003C18A	S3004603C18A

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005C18A	S0303005C18A	S0304005C18A	S0304605C18A
	33	-	-	-	S0334005C18A	S0334605C18A
	50	-	S0502005C18A	S0503005C18A	S0504005C18A	S0504605C18A
	100	-	S1002005C18A	S1003005C18A	S1004005C18A	S1004605C18A
	125	-	S1252005C18A	S1253005C18A	S1254005C18A	S1254605C18A
	150	-	S1502005C18A	S1503005C18A	S1504005C18A	S1504605C18A
	200	-	S2002005C18A	S2003005C18A	S2004005C18A	S2004605C18A
	250	-	S2502005C18A	S2503005C18A	S2504005C18A	S2504605C18A
	300	-	-	-	S3004005C18A	S3004605C18A

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010C18A	S0303010C18A	S0304010C18A	S0304610C18A
	33	-	-	-	S0334010C18A	S0334610C18A
	50	-	S0502010C18A	S0503010C18A	S0504010C18A	S0504610C18A
	100		S1002010C18A	S1003010C18A	S1004010C18A	S1004610C18A
	125	-	S1252010C18A	S1253010C18A	S1254010C18A	S1254610C18A
	150	-	S1502010C18A	S1503010C18A	S1504010C18A	S1504610C18A
	200	-	S2002010C18A	S2003010C18A	S2004010C18A	S2004610C18A
	250	-	S2502010C18A	S2503010C18A	S2504010C18A	S2504610C18A
	300	-	-	-	S3004010C18A	S3004610C18A

Accushield C8
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S03020030C8	S03030030C8	S03040030C8	S03046030C8
	33	-	-	-	S03340030C8	S03346030C8
	50	-	S05020030C8	S05030030C8	S05040030C8	S05046030C8
	75	-	S07520030C8	S07530030C8	-	-
	100	-	S10020030C8	S10030030C8	S10040030C8	S10046030C8
	125	-	S12520030C8	S12530030C8	S12540030C8	S12546030C8
	150	-	S15020030C8	S15030030C8	S15040030C8	S15046030C8
	200	-	S20020030C8	S20030030C8	S20040030C8	S20046030C8
	250	-	S25020030C8	S25030030C8	S25040030C8	S25046030C8
	300	-	-	-	S30040030C8	S30046030C8

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S03020050C8	S03030050C8	S03040050C8	S03046050C8
	33	-	-	-	S03340050C8	S03346050C8
	50	-	S05020050C8	S05030050C8	S05040050C8	S05046050C8
	75	-	S07520050C8	S07530050C8	-	-
	100	-	S10020050C8	S10030050C8	S10040050C8	S10046050C8
	125	-	S12520050C8	S12530050C8	S12540050C8	S12546050C8
	150	-	S15020050C8	S15030050C8	S15040050C8	S15046050C8
	200	-	S20020050C8	S20030050C8	S20040050C8	S20046050C8
	250	-	S25020050C8	S25030050C8	S25040050C8	S25046050C8
	300	-	-	-	S30040050C8	S30046050C8

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S03020100C8	S03030100C8	S03040100C8	S03046100C8
	33	-	-	-	S03340100C8	S03346100C8
	50	-	S05020100C8	S05030100C8	S05040100C8	S05046100C8
	100	-	S10020100C8	S10030100C8	S10040100C8	S10046100C8
	125	-	S12520100C8	S12530100C8	S12540100C8	S12546100C8
	150	-	S15020100C8	S15030100C8	S15040100C8	S15046100C8
	200	-	S20020100C8	S20030100C8	S20040100C8	S20046100C8
	250	-	S25020100C8	S25030100C8	S25040100C8	S25046100C8
	300	-	-	-	S30040100C8	S30046100C8

Accushield C8 Peptide
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S03020030C8P	S03030030C8P	S03040030C8P	S03046030C8P
	50	-	S05020030C8P	S05030030C8P	S05040030C8P	S05046030C8P
	75	-	S07520030C8P	S07530030C8P	-	-
	100	-	S10020030C8P	S10030030C8P	S10040030C8P	S10046030C8P
	125	-	S12520030C8P	S12530030C8P	S12540030C8P	S12546030C8P
	150	-	S15020030C8P	S15030030C8P	S15040030C8P	S15046030C8P
	200	-	S20020030C8P	S20030030C8P	S20040030C8P	S20046030C8P
	250	-	S25020030C8P	S25030030C8P	S25040030C8P	S25046030C8P
	300	-	-	-	S30040030C8P	S30046030C8P

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S03020050C8P	S03030050C8P	S03040050C8P	S03046050C8P
	33	-	-	S03340050C8P	S03340050C8P	S03346050C8P
	50	-	S05020050C8P	S05030050C8P	S05040050C8P	S05046050C8P
	100	-	S10020050C8P	S10030050C8P	S10040050C8P	S10046050C8P
	125	-	S12520050C8P	S12530050C8P	S12540050C8P	S12546050C8P
	150	-	S15020050C8P	S15030050C8P	S15040050C8P	S15046050C8P
	200	-	S20020050C8P	S20030050C8P	S20040050C8P	S20046050C8P
	250	-	S25020050C8P	S25030050C8P	S25040050C8P	S25046050C8P
	300	-	-	-	S30040050C8P	S30046050C8P

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S03020100C8P	S03030100C8P	S03040100C8P	S03046100C8P
	33	-	-	-	S03340100C8P	S03346100C8P
	50	-	S05020100C8P	S05030100C8P	S05040100C8P	S05046100C8P
	100	-	S10020100C8P	S10030100C8P	S10040100C8P	S10046100C8P
	125	-	S12520100C8P	S12530100C8P	S12540100C8P	S12546100C8P
	150	-	S15020100C8P	S15030100C8P	S15040100C8P	S15046100C8P
	200	-	S20020100C8P	S20030100C8P	S20040100C8P	S20046100C8P
	250	-	S25020100C8P	S25030100C8P	S25040100C8P	S25046100C8P
	300	-	-	-	S30040100C8P	S30046100C8P

Accushield C8 AQ
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003C08A	S0303003C08A	S0304003C08A	S0304603C08A
	33	-	-	-	S0334003C08A	S0334603C08A
	50	-	S0502003C08A	S0503003C08A	S0504003C08A	S0504603C08A
	100	-	S1002003C08A	S1003003C08A	S1004003C08A	S1004603C08A
	125	-	S1252003C08A	S1253003C08A	S1254003C08A	S1254603C08A
	150	-	S1502003C08A	S1503003C10A	S1504003C08A	S1504603C08A
	200	-	S2002003C08A	S2003003C08A	S2004003C08A	S2004603C08A
	250	-	S2502003C08A	S2503003C08A	S2504003C08A	S2504603C08A
	300	-	-	-	S3004003C08A	S3004603C08A

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005C08A	S0303005C08A	S0304005C08A	S0304605C08A
	33	-	-	-	S0334005C08A	S0334605C08A
	50	-	S0502005C08A	S0503005C08A	S0504005C08A	S0504605C08A
	100	-	S1002005C08A	S1003005C08A	S1004005C08A	S1004605C08A
	125	-	S1252005C08A	S1253005C08A	S1254005C08A	S1254605C08A
	150	-	S1502005C08A	S1503005C08A	S1504005C08A	S1504605C08A
	200	-	S2002005C08A	S2003005C08A	S2004005C08A	S2004605C08A
	250	-	S2502005C08A	S2503005C08A	S2504005C08A	S2504605C08A
	300	-	-	-	S3004005C08A	S3004605C08A

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010C08A	S0303010C08A	S0304010C08A	S0304610C08A
	33	-	-	-	S0334010C08A	S0334610C08A
	50	-	S0502010C08A	S0503010C08A	S0504010C08A	S0504610C08A
	100	-	S1002010C08A	S1003010C08A	S1004010C08A	S1004610C08A
	125	-	S1252010C08A	S1253010C08A	S1254010C08A	S1254610C08A
	150	-	S1502010C08A	S1503010C08A	S1504010C08A	S1504610C08A
	200	-	S2002010C08A	S2003010C08A	S2004010C08A	S2004610C08A
	250	-	S2502010C08A	S2503010C08A	S2504010C08A	S2504610C08A
	300	-	-	-	S3004010C08A	S3004610C08A

Accushield Phenyl
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003PHN	S0303003PHN	S0304003PHN	S0304603PHN
	33	-	-	-	S0334003PHN	S0334603PHN
	50	-	S0502003PHN	S0503003PHN	S0504003PHN	S0504603PHN
	100	-	S1002003PHN	S1003003PHN	S1004003PHN	S1004603PHN
	125	-	S1252003PHN	S1253003PHN	S1254003PHN	S1254603PHN
	150	-	S1502003PHN	S1503003PHN	S1504003PHN	S1504603PHN
	200	-	S2002003PHN	S2003003PHN	S2004003PHN	S2004603PHN
	250	-	S2502003PHN	S2503003PHN	S2504003PHN	S2504603PHN
	300	-	-	-	S3004003PHN	S3004603PHN

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005PHN	S0303005PHN	S0304005PHN	S0304605PHN
	33	-	-	-	S0334005PHN	S0334605PHN
	50	-	S0502005PHN	S0503005PHN	S0504005PHN	S0504605PHN
	100	-	S1002005PHN	S1003005PHN	S1004005PHN	S1004605PHN
	125	-	S1252005PHN	S1253005PHN	S1254005PHN	S1254605PHN
	150	-	S1502005PHN	S1503005PHN	S1504005PHN	S1504605PHN
	200	-	S2002005PHN	S2003005PHN	S2004005PHN	S2004605PHN
	250	-	S2502005PHN	S2503005PHN	S2504005PHN	S2504605PHN
	300	-	-	-	S3004005PHN	S3004605PHN

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010PHN	S0303010PHN	S0304010PHN	S0304610PHN
	33	-	-	-	S0334010PHN	S0334610PHN
	50	-	S0502010PHN	S0503010PHN	S0504010PHN	S0504610PHN
	100	-	S1002010PHN	S1003010PHN	S1004010PHN	S1004610PHN
	125	-	S1252010PHN	S1253010PHN	S1254010PHN	S1254610PHN
	150	-	S1502010PHN	S1503010PHN	S1504010PHN	S1504610PHN
	200	-	S2002010PHN	S2003010PHN	S2004010PHN	S2004610PHN
	250	-	S2502010PHN	S2503010PHN	S2504010PHN	S2504610PHN
	300	-	-	-	S3004010PHN	S3004610PHN

Accushield Bi-Phenyl
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003BPH	S0303003BPH	S0304003BPH	S0304603BPH
	33	-	-	-	S0334003BPH	S0334603BPH
	50	-	S0502003BPH	S0503003BPH	S0504003BPH	S0504603BPH
	100	-	S1002003BPH	S1003003BPH	S1004003BPH	S1004603BPH
	125	-	S1252003BPH	S1253003BPH	S1254003BPH	S1254603BPH
	150	-	S1502003BPH	S1503003BPH	S1504003BPH	S1504603BPH
	200	-	S2002003BPH	S2003003BPH	S2004003BPH	S2004603BPH
	250	-	S2502003BPH	S2503003BPH	S2504003BPH	S2504603BPH
	300	-	-	-	S3004003BPH	S3004603BPH

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005BPH	S0303005BPH	S0304005BPH	S0304605BPH
	33	-	-	-	S0334005BPH	S0334605BPH
	50	-	S0502005BPH	S0503005BPH	S0504005BPH	S0504605BPH
	100	-	S1002005BPH	S1003005BPH	S1004005BPH	S1004605BPH
	125	-	S1252005BPH	S1253005BPH	S1254005BPH	S1254605BPH
	150	-	S1502005BPH	S1503005BPH	S1504005BPH	S1504605BPH
	200	-	S2002005BPH	S2003005BPH	S2004005BPH	S2004605BPH
	250	-	S2502005BPH	S2503005BPH	S2504005BPH	S2504605BPH
	300	-	-	-	S3004005BPH	S3004605BPH

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010BPH	S0303010BPH	S0304010BPH	S0304610BPH
	33	-	-	-	S0334010BPH	S0334610BPH
	50	-	S0502010BPH	S0503010BPH	S0504010BPH	S0504610BPH
	100	-	S1002010BPH	S1003010BPH	S1004010BPH	S1004610BPH
	125	-	S1252010BPH	S1253010BPH	S1254010BPH	S1254610BPH
	150	-	S1502010BPH	S1503010BPH	S1504010BPH	S1504610BPH
	200	-	S2002010BPH	S2003010BPH	S2004010BPH	S2004610BPH
	250	-	S2502010BPH	S2503010BPH	S2504010BPH	S2504610BPH
	300	-	-	-	S3004010BPH	S3004610BPH

Accushield Bi-Phenyl peptide
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003BPHP	S0303003BPHP	S0304003BPHP	S0304603BPHP
	33	-	-	-	S0334003BPHP	S0334603BPHP
	50	-	S0502003BPHP	S0503003BPHP	S0504003BPHP	S0504603BPHP
	100	-	S1002003BPHP	S1003003BPHP	S1004003BPHP	S1004603BPHP
	125	-	S1252003BPHP	S1253003BPHP	S1254003BPHP	S1254603BPHP
	150	-	S1502003BPHP	S1503003BPHP	S1504003BPHP	S1504603BPHP
	200	-	S2002003BPHP	S2003003BPHP	S2004003BPHP	S2004603BPHP
	250	-	S2502003BPHP	S2503003BPHP	S2504003BPHP	S2504603BPHP
	300	-	-	-	S3004003BPHP	S3004603BPHP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005BPHP	S0303005BPHP	S0304005BPHP	S0304605BPHP
	33	-	-	-	S0334005BPHP	S0334605BPHP
	50	-	S0502005BPHP	S0503005BPHP	S0504005BPHP	S0504605BPHP
	100	-	S1002005BPHP	S1003005BPHP	S1004005BPHP	S1004605BPHP
	125	-	S1252005BPHP	S1253005BPHP	S1254005BPHP	S1254605BPHP
	150	-	S1502005BPHP	S1503005BPHP	S1504005BPHP	S1504605BPHP
	200	-	S2002005BPHP	S2003005BPHP	S2004005BPHP	S2004605BPHP
	250	-	S2502005BPHP	S2503005BPHP	S2504005BPHP	S2504605BPHP
	300	-	-	-	S3004005BPHP	S3004605BPHP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010BPHP	S0303010BPHP	S0304010BPHP	S0304610BPHP
	33	-	-	-	S0334010BPHP	S0334610BPHP
	50	-	S0502010BPHP	S0503010BPHP	S0504010BPHP	S0504610BPHP
	100	-	S1002010BPHP	S1003010BPHP	S1004010BPHP	S1004610BPHP
	125	-	S1252010BPHP	S1253010BPHP	S1254010BPHP	S1254610BPHP
	150	-	S1502010BPHP	S1503010BPHP	S1504010BPHP	S1504610BPHP
	200	-	S2002010BPHP	S2003010BPHP	S2004010BPHP	S2004610BPHP
	250	-	S2502010BPHP	S2503010BPHP	S2504010BPHP	S2504610BPHP
	300	-	-	-	S3004010BPHP	S3004610BPHP

Accushield PFP
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003PFP	S0303003PFP	S0304003PFP	S0304603PFP
	50	-	S0502003PFP	S0503003PFP	S0504003PFP	S0504603PFP
	75	-	S0752003PFP	S0753003PFP	-	-
	100	-	S1002003PFP	S1003003PFP	S1004003PFP	S1004603PFP
	125	-	S1252003PFP	S1253003PFP	S1254003PFP	S1254603PFP
	150	-	S1502003PFP	S1503003PFP	S1504003PFP	S1504603PFP
	200	-	S2002003PFP	S2003003PFP	S2004003PFP	S2004603PFP
	250	-	S2502003PFP	S2503003PFP	S2504003PFP	S2504603PFP
	300	-	-	-	S3004003PFP	S3004603PFP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005PFP	S0303005PFP	S0304005PFP	S0304605PFP
	33	-	-	-	S0334005PFP	S0334605PFP
	50	-	S0502005PFP	S0503005PFP	S0504005PFP	S0504605PFP
	75	-	S0752005PFP	S0753005PFP	-	-
	100	-	S1002005PFP	S1003005PFP	S1004005PFP	S1004605PFP
	125	-	S1252005PFP	S1253005PFP	S1254005PFP	S1254605PFP
	150	-	S1502005PFP	S1503005PFP	S1504005PFP	S1504605PFP
	200	-	S2002005PFP	S2003005PFP	S2004005PFP	S2004605PFP
	250	-	S2502005PFP	S2503005PFP	S2504005PFP	S2504605PFP
	300	-	-	-	S3004005PFP	S3004605PFP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010PFP	S0303010PFP	S0304010PFP	S0304610PFP
	33	-	-	-	S0334010PFP	S0334610PFP
	50	-	S0502010PFP	S0503010PFP	S0504010PFP	S0504610PFP
	100	-	S1002010PFP	S1003010PFP	S1004010PFP	S1004610PFP
	125	-	S1252010PFP	S1253010PFP	S1254010PFP	S1254610PFP
	150	-	S1502010PFP	S1503010PFP	S1504010PFP	S1504610PFP
	200	-	S2002010PFP	S2003010PFP	S2004010PFP	S2004610PFP
	250	-	S2502010PFP	S2503010PFP	S2504010PFP	S2504610PFP
	300	-	-	-	S3004010PFP	S3004610PFP

Accushield Amino
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003AMN	S0303003AMN	S0304003AMN	S0304603AMN
	50	-	S0502003AMN	S0503003AMN	S0504003AMN	S0504603AMN
	75	-			S0752003AMN	S0753003AMN
	100	-	S1002003AMN	S1003003AMN	S1004003AMN	S1004603AMN
	125	-	S1252003AMN	S1253003AMN	S1254003AMN	S1254603AMN
	150	-	S1502003AMN	S1503003AMN	S1504003AMN	S1504603AMN
	200	-	S2002003AMN	S2003003AMN	S2004003AMN	S2004603AMN
	250	-	S2502003AMN	S2503003AMN	S2504003AMN	S2504603AMN
	300	-	-	-	S3004003AMN	S3004603AMN

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005AMN	S0303005AMN	S0304005AMN	S0304605AMN
	33	-	-	-	S0334005AMN	S0334605AMN
	50	-	S0502005AMN	S0503005AMN	S0504005AMN	S0504605AMN
	75	-	-	-	S0752005AMN	S0753005AMN
	100	-	S1002005AMN	S1003005AMN	S1004005AMN	S1004605AMN
	125	-	S1252005AMN	S1253005AMN	S1254005AMN	S1254605AMN
	150	-	S1502005AMN	S1503005AMN	S1504005AMN	S1504605AMN
	200	-	S2002005AMN	S2003005AMN	S2004005AMN	S2004605AMN
	250	-	S2502005AMN	S2503005AMN	S2504005AMN	S2504605AMN
	300	-	-	-	S3004005AMN	S3004605AMN

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	-	S0302010AMN	S0303010AMN	S0304010AMN
	33	-	-	S0304610AMN	S0334010AMN	S0334610AMN
	50	-	S0502010AMN	S0503010AMN	S0504010AMN	S0504610AMN
	100	-	S1002010AMN	S1003010AMN	S1004010AMN	S1004610AMN
	125	-	S1252010AMN	S1253010AMN	S1254010AMN	S1254610AMN
	150	-	S1502010AMN	S1503010AMN	S1504010AMN	S1504610AMN
	200	-	S2002010AMN	S2003010AMN	S2004010AMN	S2004610AMN
	250	-	S2502010AMN	S2503010AMN	S2504010AMN	S2504610AMN
	300	-	-	-	S3004010AMN	S3004610AMN

Accushield Amino peptide
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	-	S0303003AMNP	S0304003AMNP	S0304603AMNP
	50	-	S0502003AMNP	S0503003AMNP	S0504003AMNP	S0504603AMNP
	100	-	S1002003AMNP	S1003003AMNP	S1004003AMNP	S1004603AMNP
	125	-	S1252003AMNP	S1253003AMNP	S1254003AMNP	S1254603AMNP
	150	-	S1502003AMNP	S1503003AMNP	S1504003AMNP	S1504603AMNP
	200	-	S2002003AMNP	S2003003AMNP	S2004003AMNP	S2004603AMNP
	250	-	S2502003AMNP	S2503003AMNP	S2504003AMNP	S2504603AMNP
	300	-	-	-	S3004003AMNP	S3004603AMNP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005AMNP	S0303005AMNP	S0304005AMNP	S0304605AMNP
	33	-	-	-	S0334005AMNP	S0334605AMNP
	50	-	S0502005AMNP	S0503005AMNP	S0504005AMNP	S0504605AMNP
	75	-	-	-	S0752005AMNP	S0753005AMNP
	100	-	S1002005AMNP	S1003005AMNP	S1004005AMNP	S1004605AMNP
	125	-	S1252005AMNP	S1253005AMNP	S1254005AMNP	S1254605AMNP
	150	-	S1502005AMNP	S1503005AMNP	S1504005AMNP	S1504605AMNP
	200	-	S2002005AMNP	S2003005AMNP	S2004005AMNP	S2004605AMNP
	250	-	S2502005AMNP	S2503005AMNP	S2504005AMNP	S2504605AMNP
	300	-	-	-	S3004005AMNP	S3004605AMNP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010AMNP	S0303010AMNP	S0304010AMNP	S0304610AMNP
	33	-	-	-	S0334010AMNP	S0334610AMNP
	50	-	S0502010AMNP	S0503010AMNP	S0504010AMNP	S0504610AMNP
	100	-	S1002010AMNP	S1003010AMNP	S1004010AMNP	S1004610AMNP
	125	-	S1252010AMNP	S1253010AMNP	S1254010AMNP	S1254610AMNP
	150	-	S1502010AMNP	S1503010AMNP	S1504010AMNP	S1504610AMNP
	200	-	S2002010AMNP	S2003010AMNP	S2004010AMNP	S2004610AMNP
	250	-	S2502010AMNP	S2503010AMNP	S2504010AMNP	S2504610AMNP
	300	-	-	-	S3004010AMNP	S3004610AMNP

Accushield RP amide
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003RPA	S0303003RPA	S0304003RPA	S0304603RPA
	50	-	S0502003RPA	S0503003RPA	S0504003RPA	S0504603RPA
	75	-	-	-	S0752003RPA	S0753003RPA
	100	-	S1002003RPA	S1003003RPA	S1004003RPA	S1004603RPA
	125	-	S1252003RPA	S1253003RPA	S1254003RPA	S1254603RPA
	150	-	S1502003RPA	S1503003RPA	S1504003RPA	S1504603RPA
	200	-	S2002003RPA	S2003003RPA	S2004003RPA	S2004603RPA
	250	-	S2502003RPA	S2503003RPA	S2504003RPA	S2504603RPA
	300	-	-	-	S3004003RPA	S3004603RPA

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005RPA	S0303005RPA	S0304005RPA	S0304605RPA
	33	-	-	-	S0334005RPA	S0334605RPA
	50	-	S0502005RPA	S0503005RPA	S0504005RPA	S0504605RPA
	75	-	-	-	S0752005RPA	S0753005RPA
	100	-	S1002005RPA	S1003005RPA	S1004005RPA	S1004605RPA
	125	-	S1252005RPA	S1253005RPA	S1254005RPA	S1254605RPA
	150	-	S1502005RPA	S1503005RPA	S1504005RPA	S1504605RPA
	200	-	S2002005RPA	S2003005RPA	S2004005RPA	S2004605RPA
	250	-	S2502005RPA	S2503005RPA	S2504005RPA	S2504605RPA
	300	-	-	-	S3004005RPA	S3004605RPA

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010RPA	S0303010RPA	S0304010RPA	S0304610RPA
	33	-	-	-	S0334010RPA	S0334610RPA
	50	-	S0502010RPA	S0503010RPA	S0504010RPA	S0504610RPA
	100	-	S1002010RPA	S1003010RPA	S1004010RPA	S1004610RPA
	125	-	S1252010RPA	S1253010RPA	S1254010RPA	S1254610RPA
	150	-	S1502010RPA	S1503010RPA	S1504010RPA	S1504610RPA
	200	-	S2002010RPA	S2003010RPA	S2004010RPA	S2004610RPA
	250	-	S2502010RPA	S2503010RPA	S2504010RPA	S2504610RPA
	300	-	-	-	S3004010RPA	S3004610RPA

Accushield Cyano
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003CYN	S0303003CYN	S0304003CYN	S0304603CYN
	33	-	-	-	S0334003CYN	S0334603CYN
	50	-	S0502003CYN	S0503003CYN	S0504003CYN	S0504603CYN
	100	-	S1002003CYN	S1003003CYN	S1004003CYN	S1004603CYN
	125	-	S1252003CYN	S1253003CYN	S1254003CYN	S1254603CYN
	150	-	S1502003CYN	S1503003CYN	S1504003CYN	S1504603CYN
	200	-	S2002003CYN	S2003003CYN	S2004003CYN	S2004603CYN
	250	-	S2502003CYN	S2503003CYN	S2504003CYN	S2504603CYN
	300	-	-	-	S3004003CYN	S3004603CYN

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005CYN	S0303005CYN	S0304005CYN	S0304605CYN
	33	-	-	-	S0334005CYN	S0334605CYN
	50	-	S0502005CYN	S0503005CYN	S0504005CYN	S0504605CYN
	100	-	S1002005CYN	S1003005CYN	S1004005CYN	S1004605CYN
	125	-	S1252005CYN	S1253005CYN	S1254005CYN	S1254605CYN
	150	-	S1502005CYN	S1503005CYN	S1504005CYN	S1504605CYN
	200	-	S2002005CYN	S2003005CYN	S2004005CYN	S2004605CYN
	250	-	S2502005CYN	S2503005CYN	S2504005CYN	S2504605CYN
	300	-	-	-	S3004005CYN	S3004605CYN

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	-	-	S0334010CYN	S0334610CYN
	33	-	S0302010CYN	S0303010CYN	S0304010CYN	S0304610CYN
	50	-	S0502010CYN	S0503010CYN	S0504010CYN	S0504610CYN
	100	-	S1002010CYN	S1003010CYN	S1004010CYN	S1004610CYN
	125	-	S1252010CYN	S1253010CYN	S1254010CYN	S1254610CYN
	150	-	S1502010CYN	S1503010CYN	S1504010CYN	S1504610CYN
	200	-	S2002010CYN	S2003010CYN	S2004010CYN	S2004610CYN
	250	-	S2502010CYN	S2503010CYN	S2504010CYN	S2504610CYN
	300	-	-	-	S3004010CYN	S3004610CYN

Accushield Cyano Peptide
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003CYNP	S0303003CYNP	S0304003CYNP	S0304603CYNP
	33	-	-	-	S0334003CYNP	S0334603CYNP
	50	-	S0502003CYNP	S0503003CYNP	S0504003CYNP	S0504603CYNP
	100	-	S1002003CYNP	S1003003CYNP	S1004003CYNP	S1004603CYNP
	125	-	S1252003CYNP	S1253003CYNP	S1254003CYNP	S1254603CYNP
	150	-	S1502003CYNP	S1503003CYNP	S1504003CYNP	S1504603CYNP
	200	-	S2002003CYNP	S2003003CYNP	S2004003CYNP	S2004603CYNP
	250	-	S2502003CYNP	S2503003CYNP	S2504003CYNP	S2504603CYNP
	300	-	-	-	S3004003CYNP	S3004603CYNP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005CYNP	S0303005CYNP	S0304005CYNP	S0304605CYNP
	33	-	-	-	S0334005CYNP	S0334605CYNP
	50	-	S0502005CYNP	S0503005CYNP	S0504005CYNP	S0504605CYNP
	100	-	S1002005CYNP	S1003005CYNP	S1004005CYNP	S1004605CYNP
	125	-	S1252005CYNP	S1253005CYNP	S1254005CYNP	S1254605CYNP
	150	-	S1502005CYNP	S1503005CYNP	S1504005CYNP	S1504605CYNP
	200	-	S2002005CYNP	S2003005CYNP	S2004005CYNP	S2004605CYNP
	250	-	S2502005CYNP	S2503005CYNP	S2504005CYNP	S2504605CYNP
	300	-	-	-	S3004005CYNP	S3004605CYNP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010CYNP	S0303010CYNP	S0304010CYNP	S0304610CYNP
	33	-	-	-	S0334010CYNP	S0334610CYNP
	50	-	S0502010CYNP	S0503010CYNP	S0504010CYNP	S0504610CYNP
	100	-	S1002010CYNP	S1003010CYNP	S1004010CYNP	S1004610CYNP
	125	-	S1252010CYNP	S1253010CYNP	S1254010CYNP	S1254610CYNP
	150	-	S1502010CYNP	S1503010CYNP	S1504010CYNP	S1504610CYNP
	200	-	S2002010CYNP	S2003010CYNP	S2004010CYNP	S2004610CYNP
	250	-	S2502010CYNP	S2503010CYNP	S2504010CYNP	S2504610CYNP
	300	-	-	-	S3004010CYNP	S3004610CYNP

Accushield Silica Peptide
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003SLCP	S0303003SLCP	S0304003SLCP	S0304603SLCP
	50	-	S0502003SLCP	S0503003SLCP	S0504003SLCP	S0504603SLCP
	75	-	-	-	S0752003SLCP	S0753003SLCP
	100	-	S1002003SLCP	S1003003SLCP	S1004003SLCP	S1004603SLCP
	125	-	S1252003SLCP	S1253003SLCP	S1254003SLCP	S1254603SLCP
	150	-	S1502003SLCP	S1503003SLCP	S1504003SLCP	S1504603SLCP
	200	-	S2002003SLCP	S2003003SLCP	S2004003SLCP	S2004603SLCP
	250	-	S2502003SLCP	S2503003SLCP	S2504003SLCP	S2504603SLCP
	300	-	-	-	S3004003SLCP	S3004603SLCP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30	-	S0302005SLCP	S0303005SLCP	S0304005SLCP	S0304605SLCP
	33	-	-	-	S0334005SLCP	S0334605SLCP
	50	-	S0502005SLCP	S0503005SLCP	S0504005SLCP	S0504605SLCP
	75	-	-	-	S0752005SLCP	S0753005SLCP
	100	-	S1002005SLCP	S1003005SLCP	S1004005SLCP	S1004605SLCP
	125	-	S1252005SLCP	S1253005SLCP	S1254005SLCP	S1254605SLCP
	150	-	S1502005SLCP	S1503005SLCP	S1504005SLCP	S1504605SLCP
	200	-	S2002005SLCP	S2003005SLCP	S2004005SLCP	S2004605SLCP
	250	-	S2502005SLCP	S2503005SLCP	S2504005SLCP	S2504605SLCP
	300	-	-	-	S3004005SLCP	S3004605SLCP

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010SLCP	S0303010SLCP	S0304010SLCP	S0304610SLCP
	33	-	-	-	S0334010SLCP	S0334610SLCP
	50	-	S0502010SLCP	S0503010SLCP	S0504010SLCP	S0504610SLCP
	75	-	S0752010SLCP	S0753010SLCP	-	-
	100	-	S1002010SLCP	S1003010SLCP	S1004010SLCP	S1004610SLCP
	125	-	S1252010SLCP	S1253010SLCP	S1254010SLCP	S1254610SLCP
	150	-	S1502010SLCP	S1503010SLCP	S1504010SLCP	S1504610SLCP
	200	-	S2002010SLCP	S2003010SLCP	S2004010SLCP	S2004610SLCP
	250	-	S2502010SLCP	S2503010SLCP	S2504010SLCP	S2504610SLCP
	300	-	-	-	S3004010SLCP	S3004610SLCP

Accushield Silica
Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
3 micron	30	-	S0302003SLC	S0303003SLC	S0304003SLC	S0304603SLC
	33	-	-	-	S0334003SLC	S0334603SLC
	50	-	S0502003SLC	S0503003SLC	S0504003SLC	S0504603SLC
	75	-	-	-	S0752003SLC	S0753003SLC
	100	-	S1002003SLC	S1003003SLC	S1004003SLC	S1004603SLC
	125	-	S1252003SLC	S1253003SLC	S1254003SLC	S1254603SLC
	150	-	S1502003SLC	S1503003SLC	S1504003SLC	S1504603SLC
	200	-	S2002003SLC	S2003003SLC	S2004003SLC	S2004603SLC
	250	-	S2502003SLC	S2503003SLC	S2504003SLC	S2504603SLC
	300	-	-	-	S3004003SLC	S3004603SLC

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
5 micron	30		S0302005SLC	S0303005SLC	S0304005SLC	S0304605SLC
	33				S0334005SLC	S0334605SLC
	50		S0502005SLC	S0503005SLC	S0504005SLC	S0504605SLC
	100		S1002005SLC	S1003005SLC	S1004005SLC	S1004605SLC
	125		S1252005SLC	S1253005SLC	S1254005SLC	S1254605SLC
	150		S1502005SLC	S1503005SLC	S1504005SLC	S1504605SLC
	200		S2002005SLC	S2003005SLC	S2004005SLC	S2004605SLC
	250		S2502005SLC	S2503005SLC	S2504005SLC	S2504605SLC
	300				S3004005SLC	S3004605SLC

Particle size	Length (mm)	ID(1.0 mm)	ID(2.0 mm)	ID(3.0 mm)	ID(4.0 mm)	ID(4.6 mm)
10 micron	30	-	S0302010SLC	S0303010SLC	S0304010SLC	S0304610SLC
	33	-	-	-	S0334010SLC	S0334610SLC
	50	-	S0502010SLC	S0503010SLC	S0504010SLC	S0504610SLC
	75	-	S0752010SLC	S0753010SLC	-	-
	100	-	S1002010SLC	S1003010SLC	S1004010SLC	S1004610SLC
	125	-	S1252010SLC	S1253010SLC	S1254010SLC	S1254610SLC
	150	-	S1502010SLC	S1503010SLC	S1504010SLC	S1504610SLC
	200	-	S2002010SLC	S2003010SLC	S2004010SLC	S2004610SLC
	250	-	S2502010SLC	S2503010SLC	S2504010SLC	S2504610SLC
	300	-	-	-	S3004010SLC	S3004610SLC

Key Features

High Efficiency

Exceptional separation performance for accurate analytical results.

Wide Range of Applications

Suitable for pharmaceutical, environmental, food, and chemical analysis.

Durable & Reliable

Manufactured with robust materials for long-lasting performance.

Optimized Particle Technology

Enhanced column packing for improved resolution and peak symmetry.

Compatibility

Designed to work with major chromatographic systems.

Normal-Phase Columns

Used for analyzing polar compounds.

Applications

Our Analytical Columns are trusted by professionals in:

Pharmaceutical Research

Ensuring drug purity and formulation accuracy.

High Quality

Create user stories and issues, plan sprints, and distribute useful tasks across your best software team.

Environmental Testing

Detecting contaminants in water and soil.

Housing Security

Prioritize and discuss your team’s work in full context with complete visibility and make changes for everyone.

Food & Beverage Industry

Quality control and safety verification.

Full Support

Improve team performance based on real-time, visual data that your team can put to use for best results.

Chemical Industry

Analytical testing for industrial applications.

Full Support

Discuss and Prioritize your team’s work in full context with complete visibility and make changes for everyone.

Call to Action

Explore your design idea and make your entire website absolutely stunning!

Have Specific Requirements? We will help you to find a Perfect Solution!

Our team is ready to provide personalized assistance and help you choose the right solution for your analytical needs.

MEET WITH US!

Make a Call

Email

Accushield Columns

Accushield Columns

AccuShield C18

AccuShield C18 Peptide

AccuShield C18-AQ

Accushield

Key Features

High Efficiency

Wide Range of Applications

Durable & Reliable

Optimized Particle Technology

Compatibility

Normal-Phase Columns

Applications

Pharmaceutical Research

High Quality

Environmental Testing

Housing Security

Food & Beverage Industry

Full Support

Chemical Industry

Full Support

Call to Action

Have Specific Requirements? We will help you to find a Perfect Solution!

Service

Useful Links

Make a Call

Email

Accushield Columns

Accushield Columns

AccuShield C18

AccuShield C18 Peptide

AccuShield C18-AQ

Accushield

Key Features

High Efficiency

Wide Range of Applications

Durable & Reliable

Optimized Particle Technology

Compatibility

Normal-Phase Columns

Applications

Pharmaceutical Research

High Quality​

Environmental Testing

Housing Security​

Food & Beverage Industry

Full Support​

Chemical Industry

Full Support​

Call to Action

Have Specific Requirements? We will help you to find a Perfect Solution!

Service

Useful Links

High Quality

Housing Security

Full Support

Full Support
